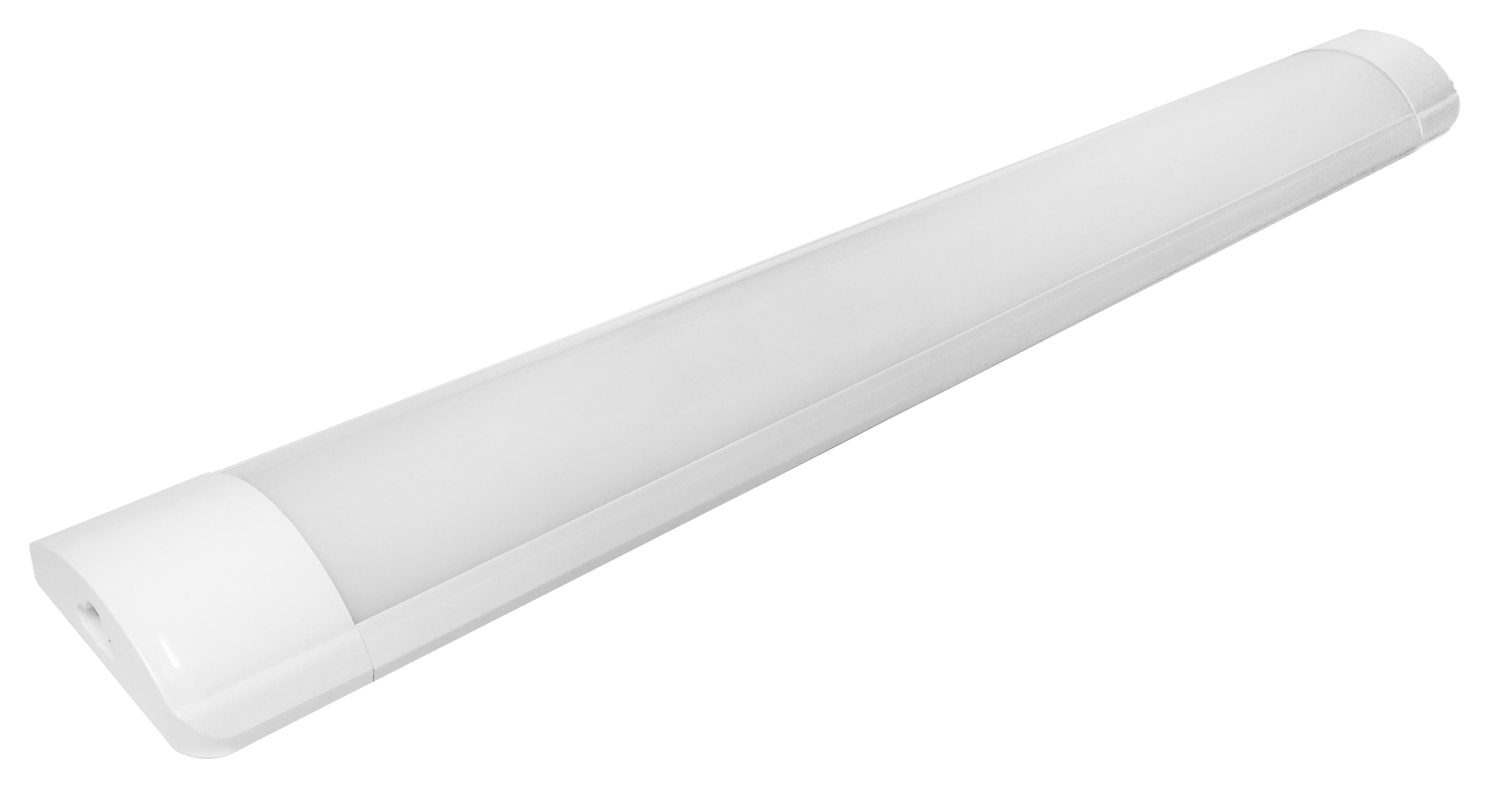

LED Batten Light

Parameter

Model	B-LDB-20W/30W/40W/50W-T
Power consumption	20W/30W/40W/50W
Input voltage	AC85-265V/50-60Hz
Power factor	≥0.95
Power efficiency	≥0.9
Available emitting color	Warm white,Natural white, Cool white
CCT	3000k/4000k/6000k
Luminous flux	>100lm/W
CRI(Ra)	>80
Beam angle	150 degrees
Size	600/900/1200/1500*75*25MM
LED quantity	96/144/192/240
LED type	SMD2835 LED
Material	Aluminum+PC Cover
PC cover	Diffusion PC
Lamp holder	integrate
Cap type	/
Certificate	CE & RoHS
Operating temperature	-20—60°C
Storage temperature	-20—60°C
Lifespan	50000 hours

Function

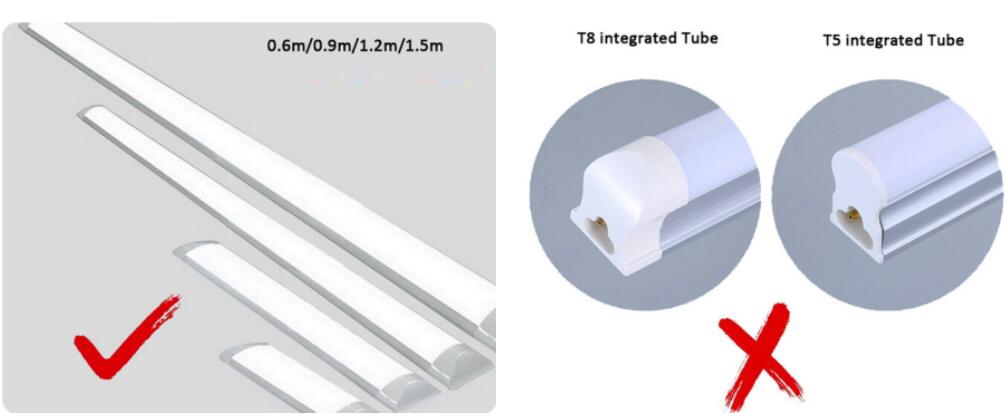

DESIGN- Integrated design with wide luminous surface, can be used for replace integrate LED T8/T5











Application

LED Batten Light  has simple and beautiful appearance, can be applied for decorative
application and lighting application. widely used in factory,home,villa,hotel,supermarket,
office,parking lot and so on.

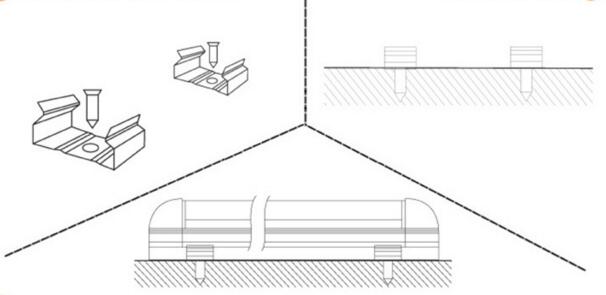

Installation



Shipping

For sample and trial order, we recommend to send by Express,

for large order, we recommend to send by air or by sea,

it depends on the country you are in, also the total volumn and weight of the products.

We will get the most discounted price from our forwarder to help you save the cost.
